Skorter | For Xiaomi M365 / Pro Scooter Parts Set, Style: Standard+Cover

1. Adopt high performance 32-bit MCU
2. Protection functions for abnormal conditions such as over-voltage, over-current, over-heat and under-voltage
3. Constant speed cruise control
4. Brake energy recovery
5. Adjustable speed limit
6. Sport and comfort mode switching
7. Firmware upgrade through APP, LEDZOD APP (with Bluetooth function version)
8. Mobile APP function, set parameters, view status
9. Double closed-loop system, quiet operation, smooth cut in the second acceleration
10. Intelligent digital display

Power parameters:
1. Speed: up to 27KM/H
2. Climbing angle: within 15 degrees
3. Drive motor torque: up to 35NM x 2
4. Drive motor power: up to 350W x 2
5. Instantaneous power: up to 700W
6. Motor control mode: sine wave vector control, current + speed closed loop control algorithm
7. Scope of application: applicable to Xiaomi scooter M365/PRO complete system replacement (this program requires matching motor battery replacement)

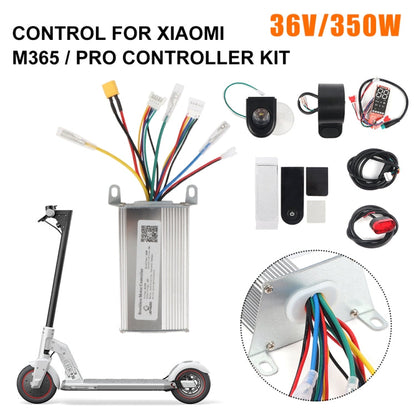

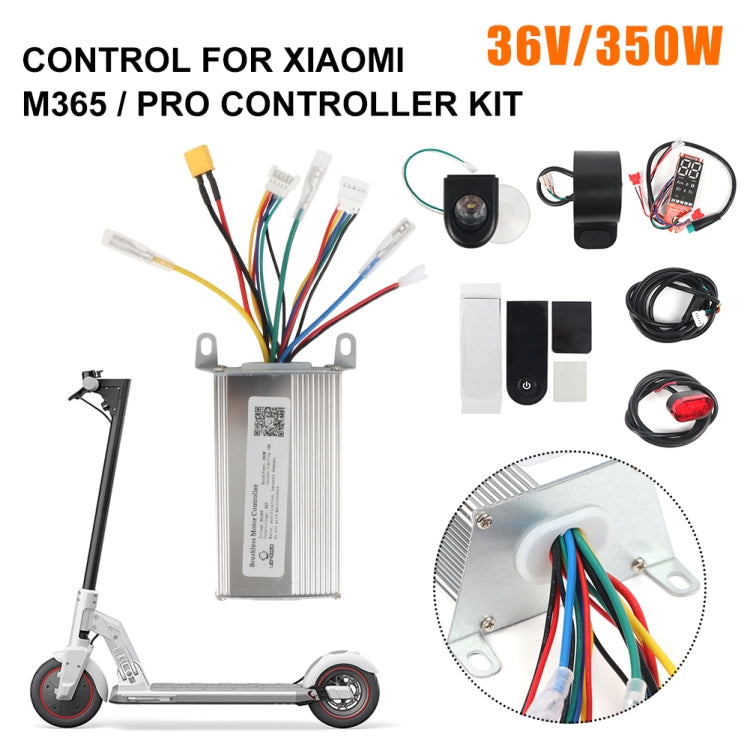

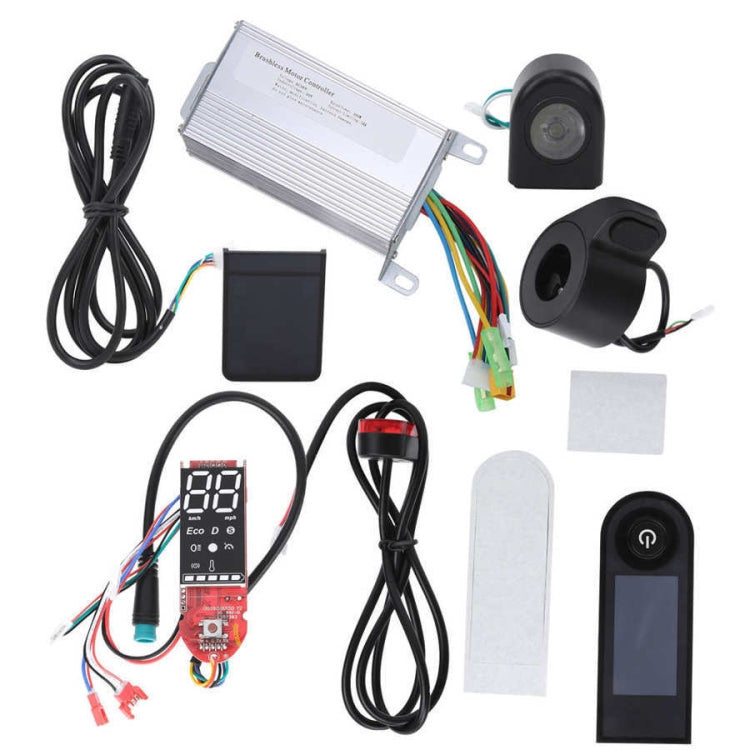

8. Standard list: controller + instrument panel + gas pedal + headlight + taillight + extension cable
9. Dimensions:
- Controller: about 12cm long, about 4.7cm wide, about 3.7cm high, about 9cm long out of the line
- Bluetooth board: about 7.5 x 2.2 x 1.5cm, the connection cable is about 25cm long, the output cable is about 11.5cm long
- Accelerator: approx. 6.5 x 4.5 x 2.7cm
- Headlight: about 4.3 x 3.1 x 2.5cm
- Connection cable: approx. 1cm in diameter at the mouth, approx. 128cm in length
- Tail light: about 3.1 x 1.2 x 1.7cm, wire length about 90cm
- Face cover: top cover approx. 4.5 x 3.2 x 0.4cm, bottom cover approx. 8.8 x 3.3 x 0.4cm
- Hand brake: about 14.8 x 8.5 x 4.2cm
- Waterproof silicone cover: about 13.5 x 3.4 x 0.5cm
- Handbrake silicone cover: approx. 8 x 1.7 x 2cm
