DIY Tools: ELECTRICAL
AC Voltage: 2V/20V/200V/600V
Type of Display: Digital display
DC Voltage: 200mV/2V/20V/200V/600V
AC Current: 200µA/2000µA/20mA/200mA
Resistance Measurement Range: Yes
Compliance: CE
DC Current: 200µA/2000µA/20mA/200mA
Capacitance Measurement Range: Yes
Operating Mode: Automatic
Model Name: AN101 Digital Multimeter
Smart Device: No
Inductance Measurement Range: Multimeter
Dimensions: Multimeter
Working Temperature: 0 - 40 ℃
Selection: yes

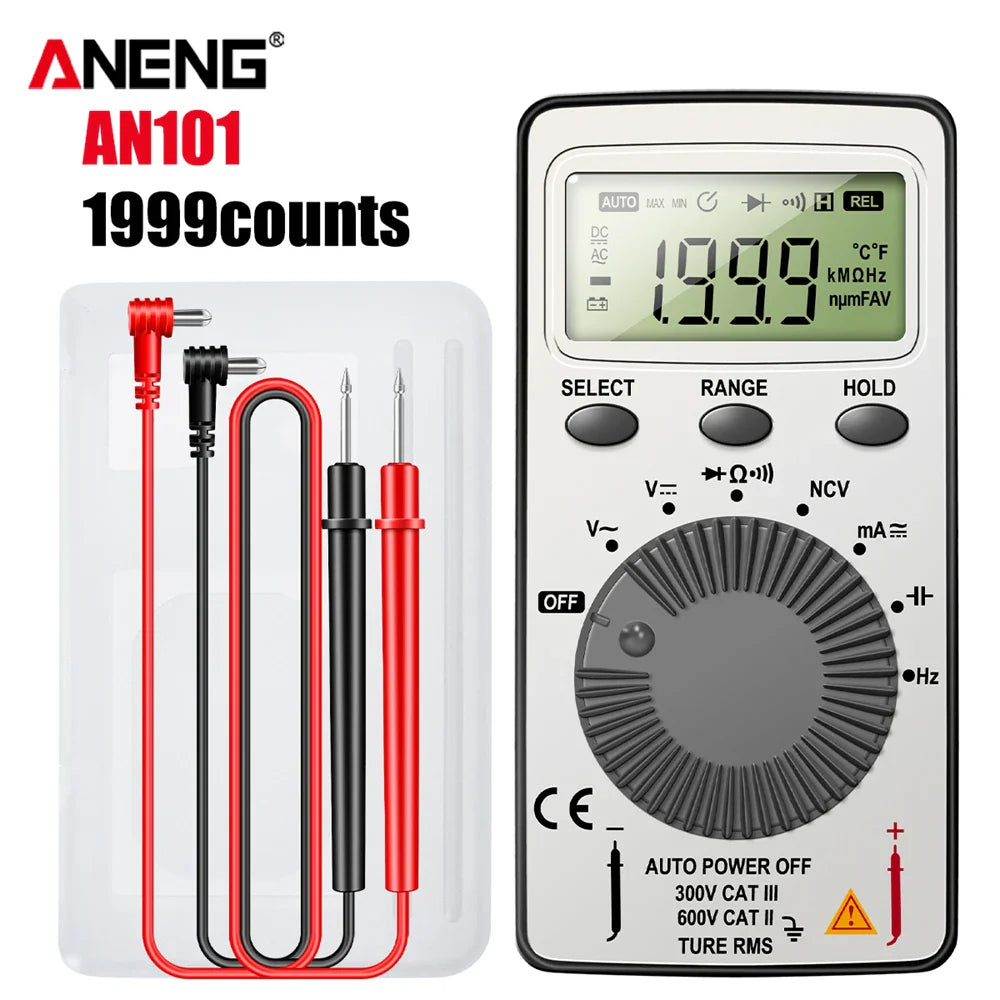

ANENG AN101 Mini Digital Multimeter 1999 T-RMS AC/DC NCV Capacitance Ammeter Voltmeter Tester professional digital test
Specifications:
Model: AN101
Display: LCD, 1999 counts with an update rate of 2/sec
Polarity Indication: Automatically displays "-"
Over-range Notification: Displays "OL"
Range selection: auto or manual

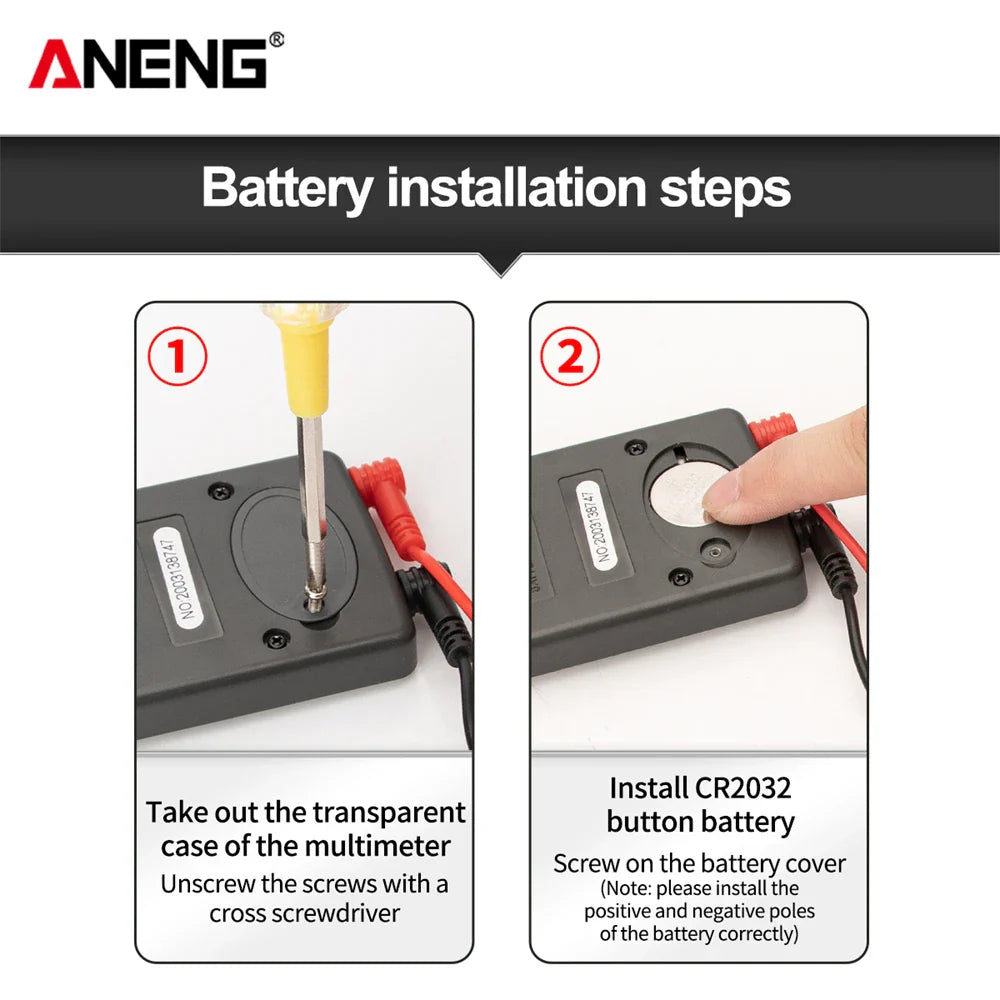

Battery Specification: 3V x 2, size 2032 (not included)
Operating Temperature: 0℃ to 40℃, less than 80%RH
Storage Temperature: -10℃ to 50℃, less than 85%RH
DC Voltage (Auto ranging):
Range, Resolution & Accuracy
200mV, 0.1mV, ±(0.8% of reading + 5 digits)
2V, 1mV, ±(0.5% of reading + 2 digits)
20V, 10mV
200V, 100mV
600V, 1V, ±(1.0% of reading + 5 digits)
Input Impedance: 10MΩ
Overload Safety: 600V DC/AC rms
Maximum Input Voltage: 600V DC
AC Voltage (Auto ranging):
Range, Resolution & Accuracy
2V, 1mV, ±(1.2% of reading + 3 digits)
20V, 10mV
200V, 100mV
600V, 1V, ±(1.2% of reading + 8 digits)
Input Impedance: 10MΩ
Frequency Range: 40Hz ~ 400Hz
Overload Safety: 600V DC/AC rms
Response Time: Average, calibrated for rms of sine wave
Max. Input voltage: 600V AC rms
DC Current:
Range, Resolution & Accuracy
200µA, 0.1µA, ±(0.8% of reading + 5 digits)
2000µA, 1µA
20mA, 10µA
200mA, 100µA
Overload Protection: F0.5A/600V fuse
Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV
AC Current:
Range, Resolution & Accuracy
200µA, 0.1µA, ±(1.0% of reading + 5 digits)
2000µA, 1µA
20mA, 10µA
200mA, 100µA
Overload Protection: F0.5A/600V fuse
Max. Input Current: 500mA
Voltage Drop: 200µA and 20mA ranges: 20mV
2000µA and 200mA ranges: 200mV
Frequency Range: 40Hz ~ 400Hz
Response: Average, calibrated in rms of sine wave
Included in Package:
1 x Digital Multimeter (battery not included)
2 x Test Leads
