DIY Supplies: ELECTRICAL
AC Voltage: 6V/60V/600V/750V
Display Type: Digital display
DC Voltage: 6V/60V/600V/1000V
AC Current: 6000mA/10A
Measuring Resistance Range: 600/6k/60k/600k/6M/60M
Certification: CE
DC Current: 6000mA/10A
Measuring Capacitance Range: 60nF/60nF/6uF/60uF/600uF/6mF/60mF/100mF
Operating Mode: Manual Range and Auto Range
Model Number: ANENG 683 Digital Multimeter
Measuring Inductance Range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz
Dimensions: 150*75*24
Operating Temperature: 0 - 40 ℃
Choice: yes
ANENG 683 Premium Touch Smart Multimeter
Overview:

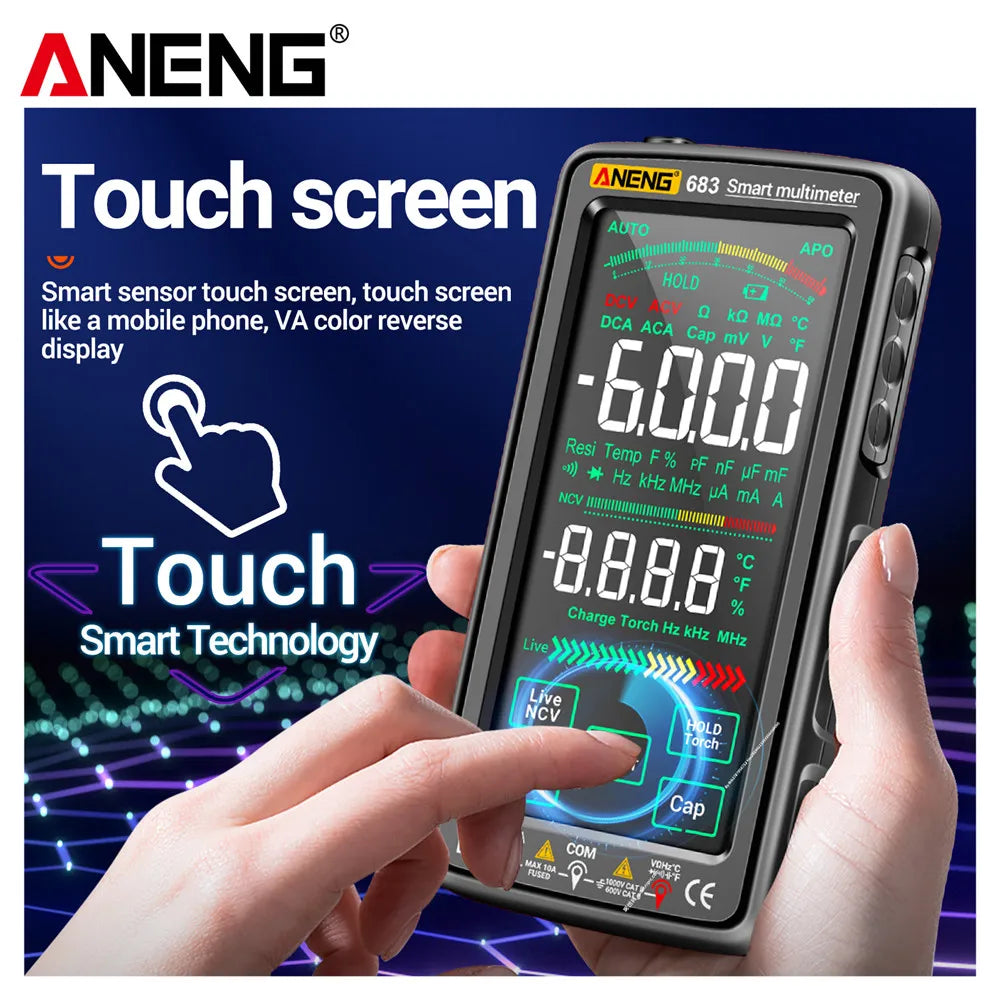

This instrument is a 3 5/6 digital multimeter that boasts stable functionality and dependable quality. The device features an LCD screen with an analog bar display. Users will enjoy the benefit of continuous power operations without the need to adjust the dial for function selection. The input of AC/DC voltage or resistance is automatically detected and measured.

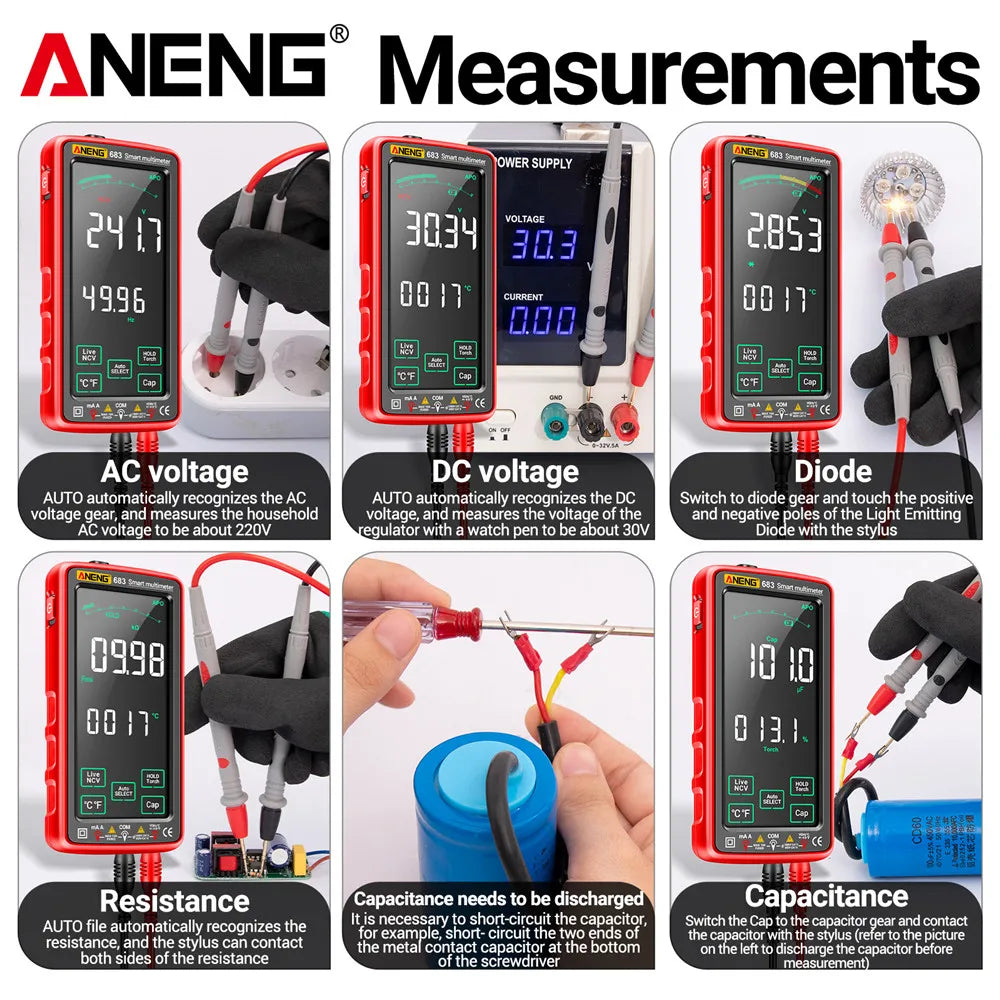

It is capable of measuring DC voltage, AC voltage sine RMS, DC current, AC current sine RMS, resistance, capacitance, live-line indication, duty cycle, diode on/off testing, unit symbols, data hold, and has an automatic power-off feature.
The multimeter is powered by high-capacity rechargeable batteries that ensure full functionality and accurate measurements. It is an excellent tool for laboratory work, factory use, radio hobbyists, and home applications.
Highlights:
Manual Range and Auto Range
Comprehensive overload protection
Maximum voltage permissible between the measuring terminal and ground: 1000V DC or 750V AC
Fuse Protection: uA/mA
Display: 6000 Counts LCD screen with analog bar
Battery Type: 3.7V/2800mA rechargeable battery

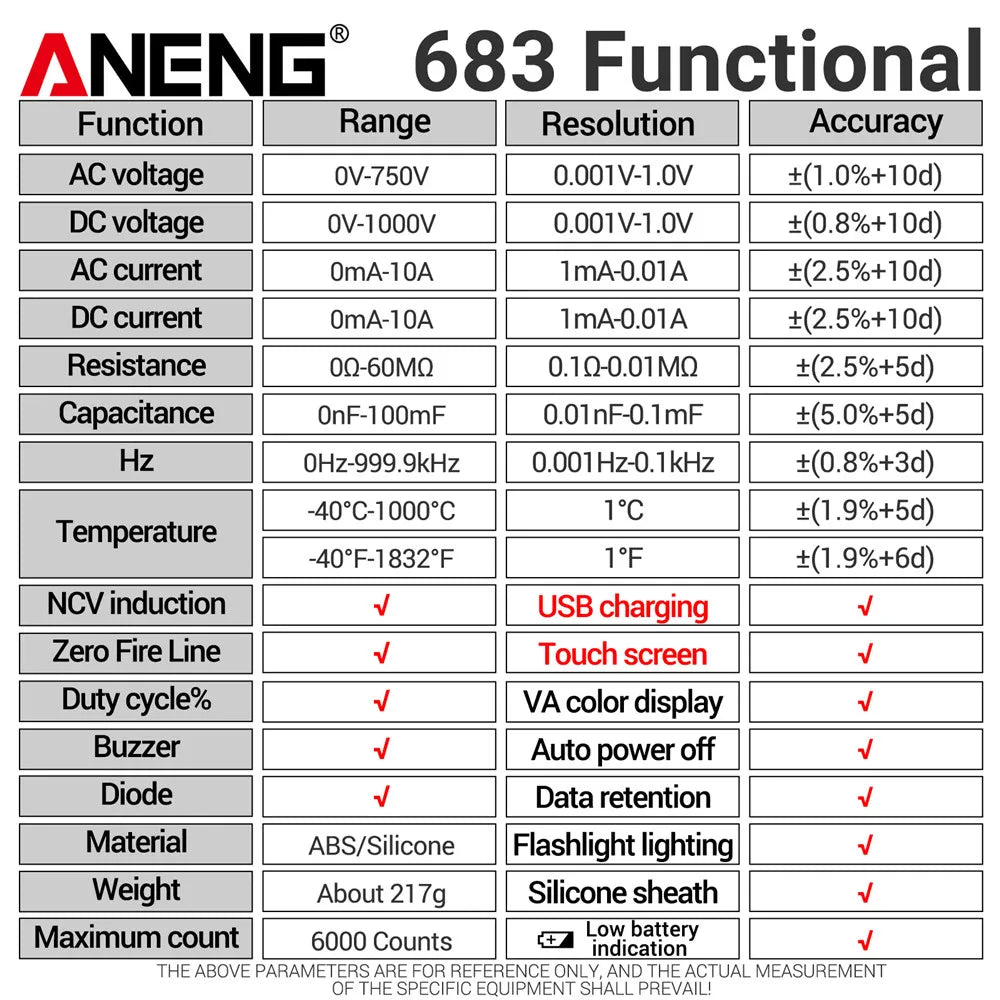

Specifications:
DC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.5% readings+3digits) |
|
600V/1000V |
0.1V/1.0V |
+-(0.8% readings+10digits) |
AC Voltage:
|
Measuring Range |
Resolution |
Accuracy |
|
6V/60V |
0.001V/0.01V |
+-(0.8% readings+3digits) |
|
600V/750V |
0.1V/1.0V |
+-(1.0% readings+10digits) |
AC and AC Current
|
Measuring Range |
Resolution |
Accuracy |
|
6000mA |
1mA |
+-(1.0% readings+5digits) |
|
10A |
0.01A |
+-(2.5% readings+10digits) |
Resistance
|
Measuring Range |
Resolution |
Accuracy |
|
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% readings+3digits) |
|
6MΩ |
0.001MΩ |
+-(1.2% readings+3digits) |
|
60MΩ |
0.01MΩ |
+-(2.5% readings+5digits) |
Capacitance
|
Measuring Range |
Resolution |
Accuracy |
|
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0%Readings+20 digits) |
|
60mF |
0.01mF |
+-(5.0%Readings+5 digits) |
|
100mF |
0.1mF |
for reference |
Frequency
|
Measuring Range |
Resolution |
Accuracy |
|
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% readings+3digits) |
|
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% readings+3digits) |
Temperature
|
Measuring Range |
Resolution |
Accuracy |
|
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
|
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
|
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
|
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
|
Diode Test |
Yes |
Circuit on/off Test |
Yes |
|
Data Hold |
Yes |
Automatic power off |
Yes |
|
Torch |
Yes |

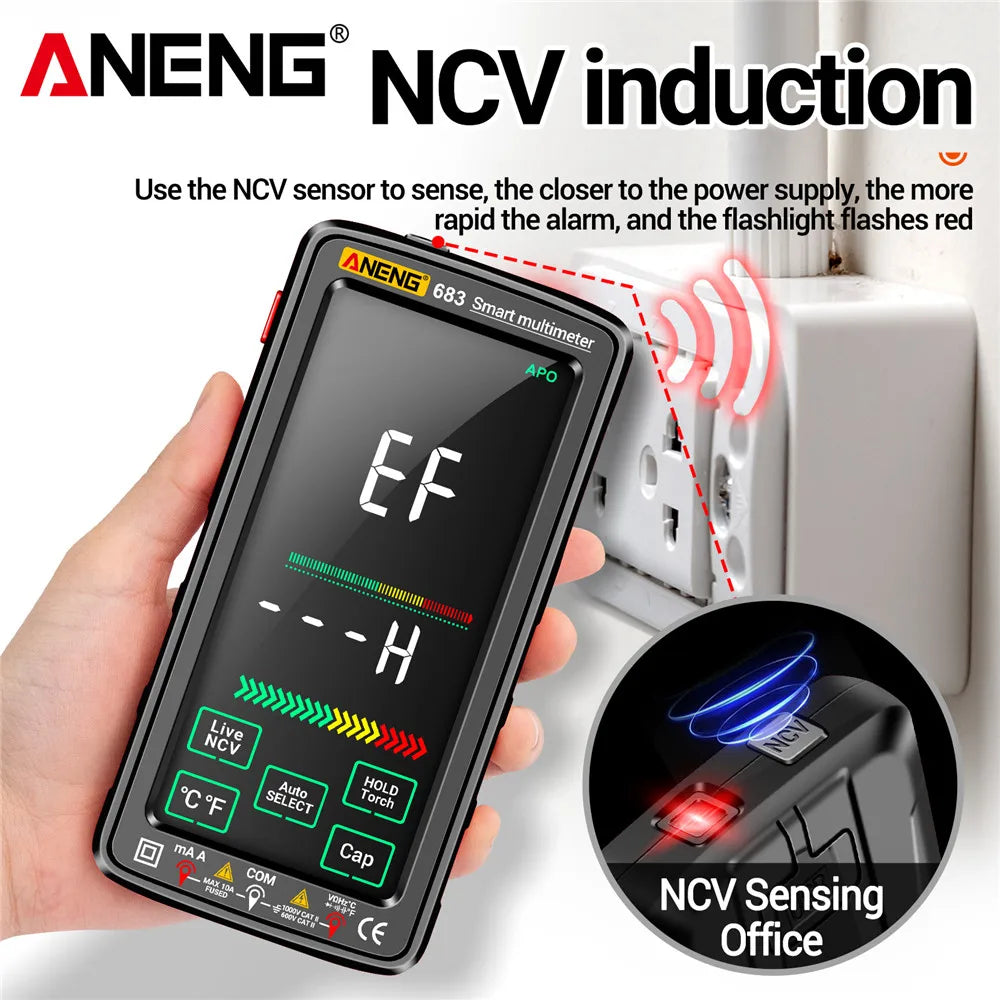

NCV Test |
Yes |
|
Buzzer |
Yes |

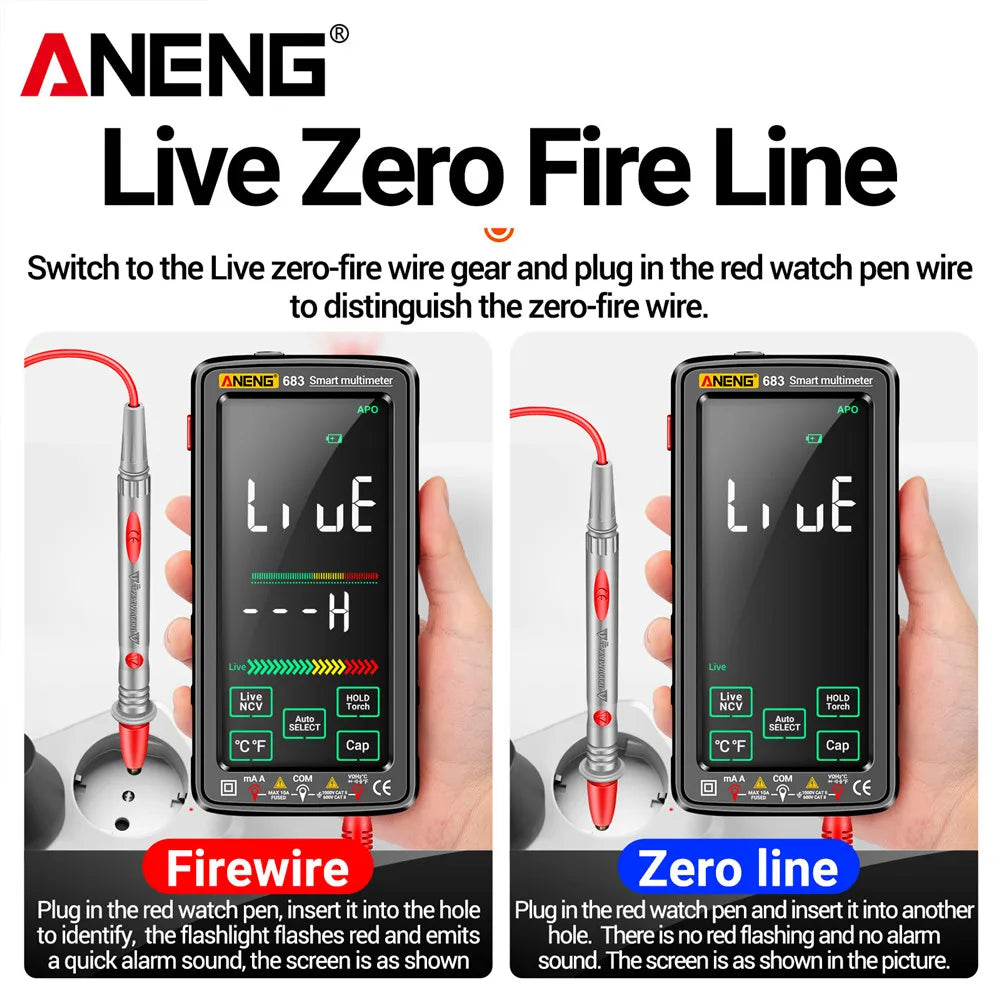

Firing line Test |
Yes |

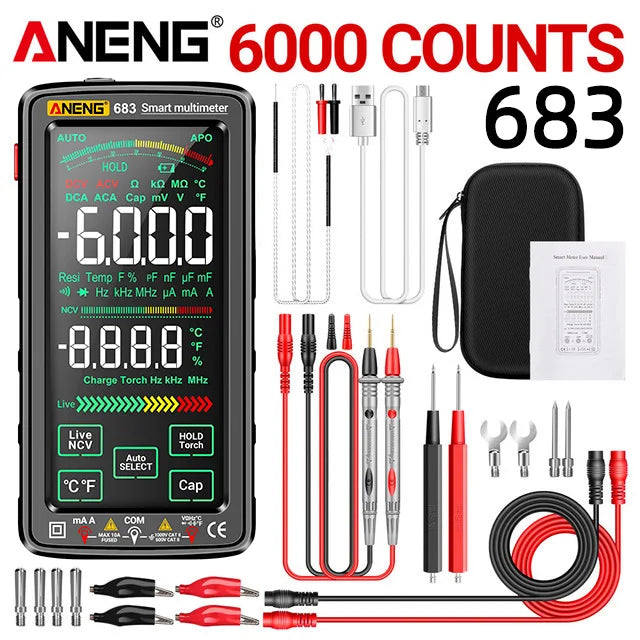

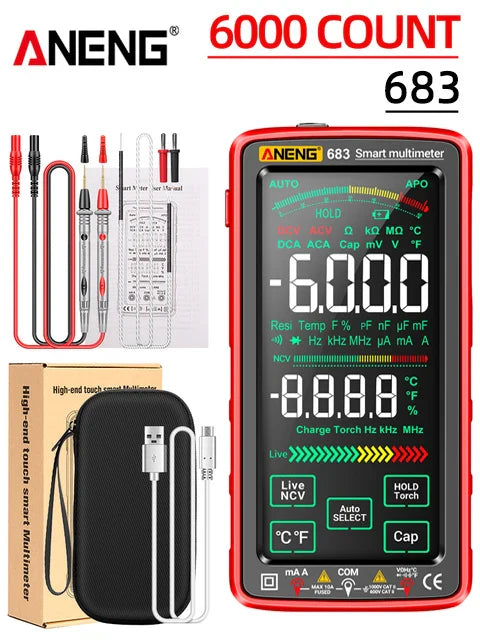

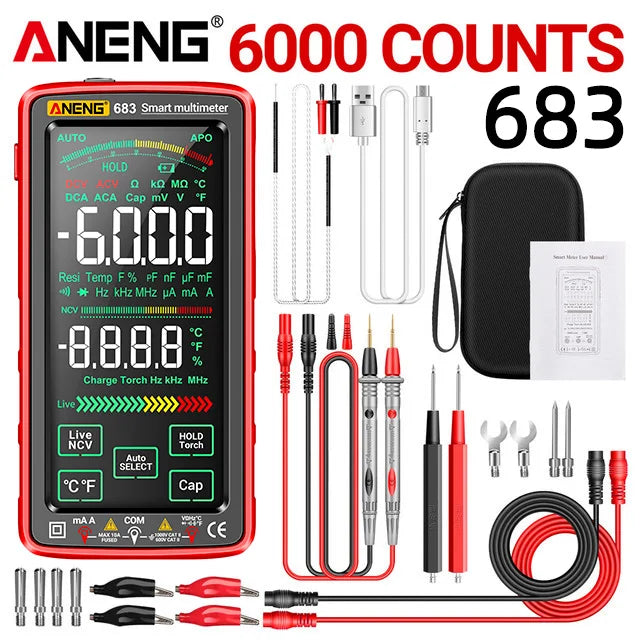

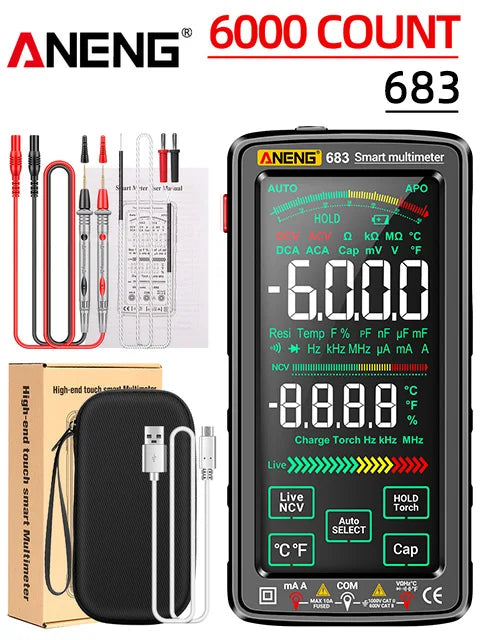

Included in Package:
As depicted in the image provided
