Skorter | 130Lbs Holding Power Electric Magnetic Lock for Door Access Control System
Skorter | 130Lbs Holding Power Electric Magnetic Lock for Door Access Control System
- Free Shipping
Couldn't load pickup availability

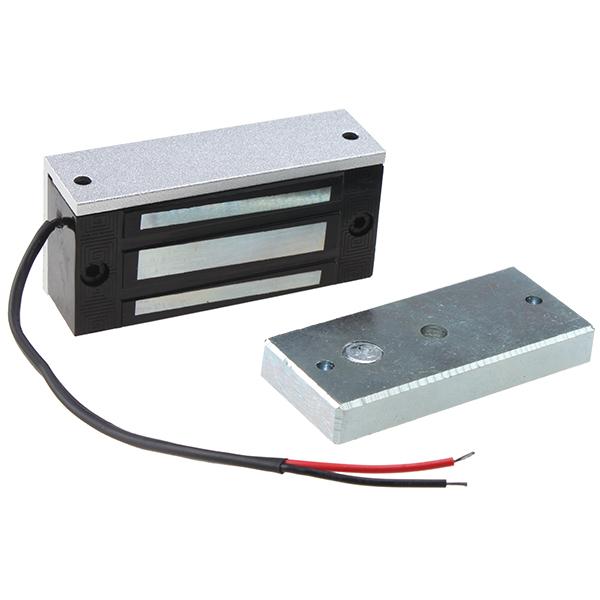

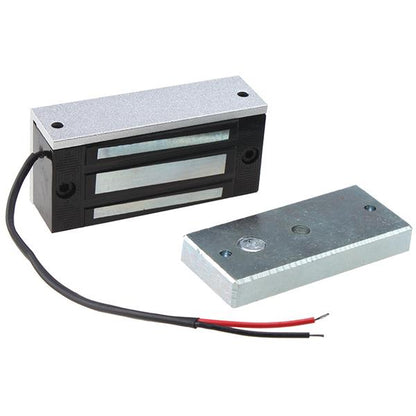

An electromagnetic lock, commonly referred to as a magnetic lock, is a security mechanism that incorporates an electromagnetic element along with a mounting bracket, designed for controlling access to doors. By affixing this system to the door frame and attaching the mounting bracket to the door, an electric current passing through the electromagnet pulls the mounting plate, securely locking the access control device in place.
Features:
- An electromagnetic lock, or magnetic locking system, includes a locking unit that features an electromagnet and a mounting plate, serving to regulate access to doors.
- When installed correctly on the door frame with the mounting plate attached to the door, the ongoing current through the electromagnet pulls the mounting plate towards it, thus keeping the access control system locked.
- In contrast to an electric strike lock used in access control, a magnetic lock lacks interlocking parts; it can be overridden by cutting off the electricity.
- Depending on the specific door type, U-brackets or L&Z brackets might be required to assist with installation. This lock is compatible with networked access control systems.
- The complete setup consists of an electric lock, power supply, access controllers, exit buttons, a doorbell, or an RFID card.
- Uses: These devices are commonly applied in access control systems and similar use cases.
Specifications:
- Lock dimensions: 80Lx37.3Wx23.3H(mm)
- Mounting plate dimensions: 74Lx32Wx11H(mm)
- Holding force: 60kg(130lbs)
- Operation mode: NC (remains locked while powered), fail-safe mode
- Voltage requirement: DC12V
- Power draw: 0.11A ~0.15A
- Safety features: Includes a built-in voltage spike protector
- Door opening mode: 90-degree swinging door
- Compatible with: Wooden doors, glass doors, metal doors, fire-rated doors, and more.
- Weight: 550g

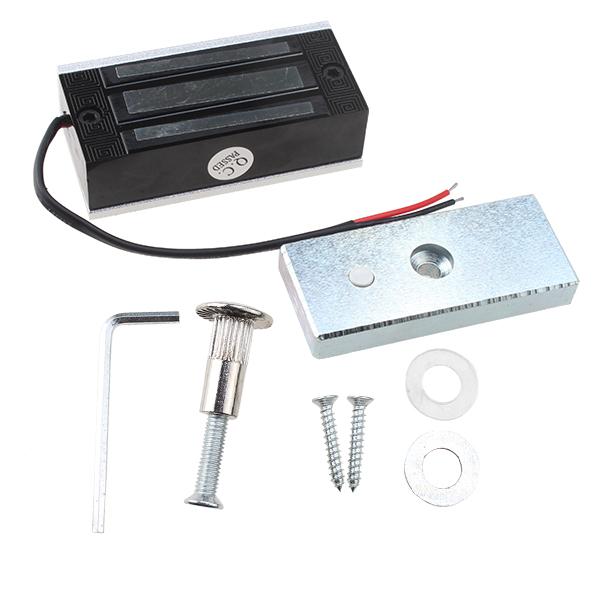

Package contents:

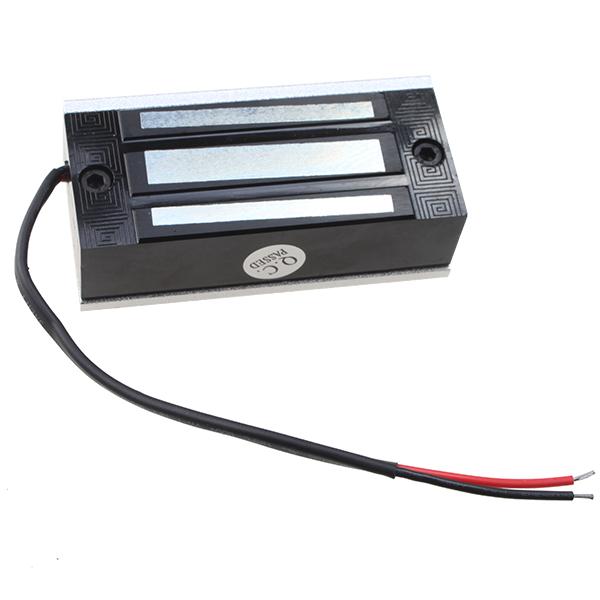

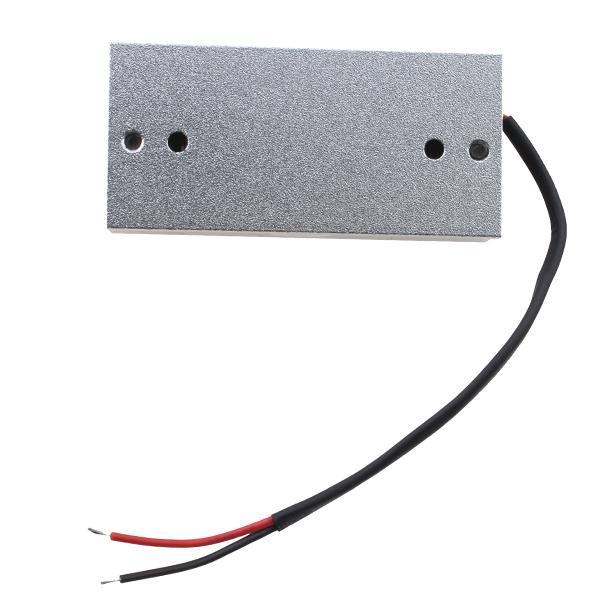

- 1x Magnetic Door Lock main unit with a force of 60kg (NC mode)

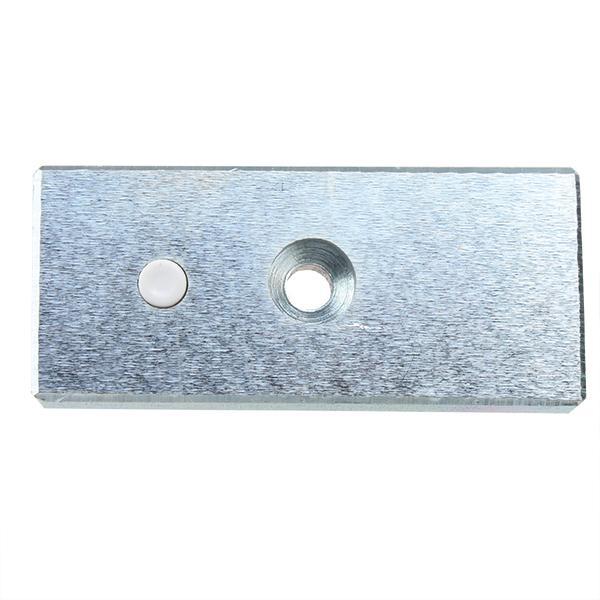

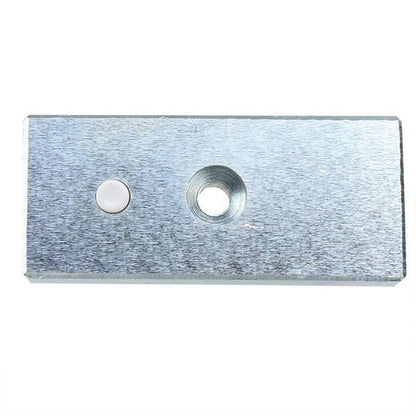

- 1x Front mounting plate

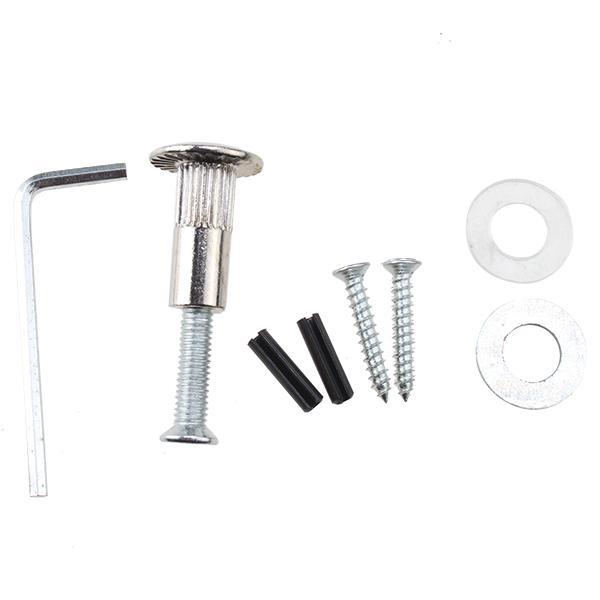

- 1x Set of mounting hardware
- 1x Instruction manual
