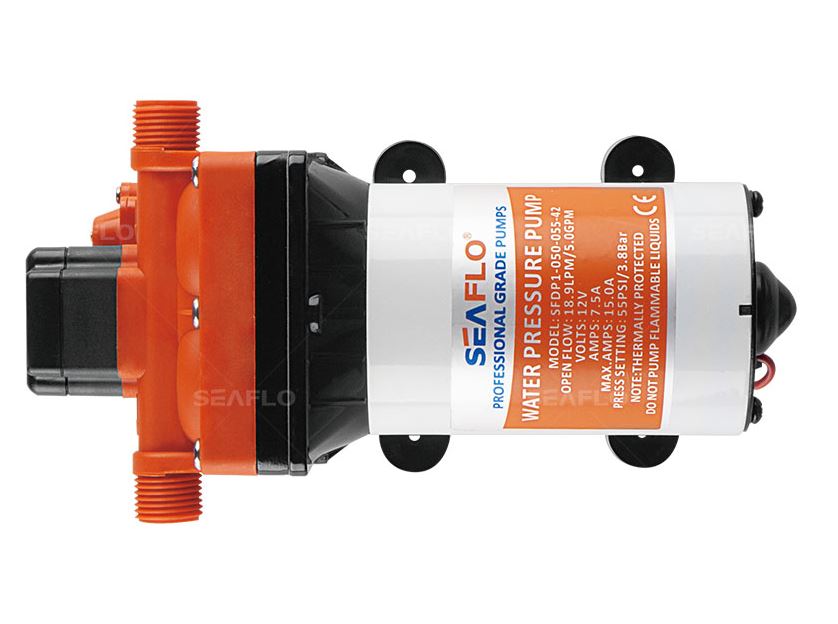

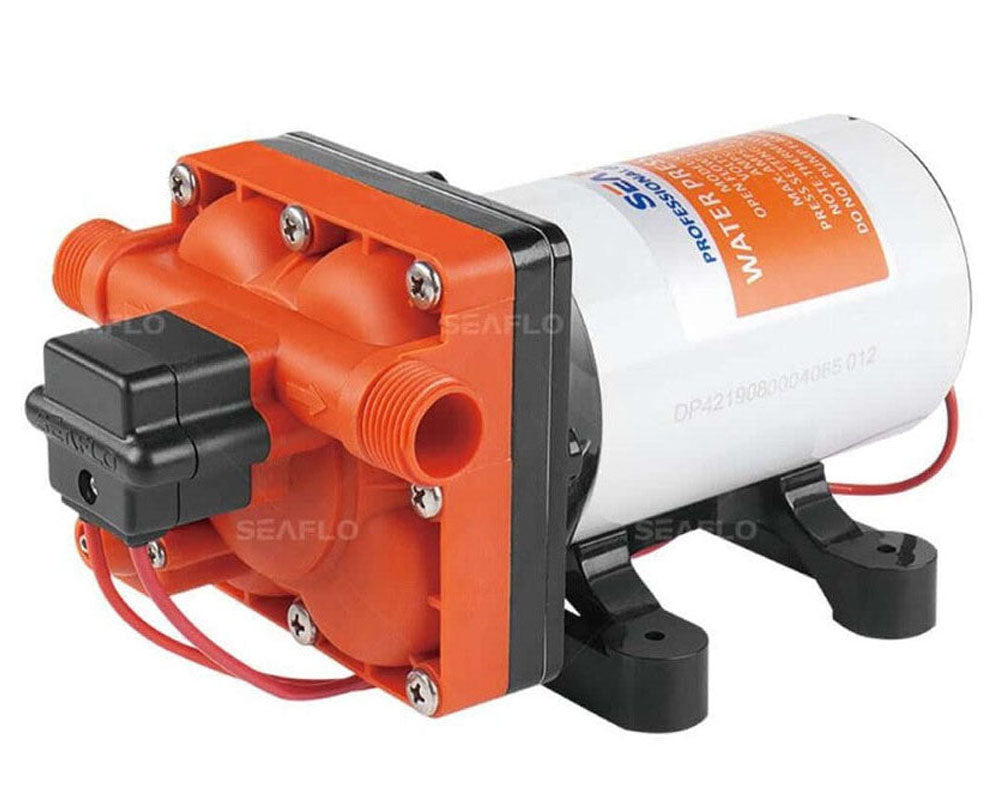

Skorter 42 Series Diaphragm Pump 12V/24V 3.0 - 11.3LPM 17 - 55PSI
Description:
The Skorter 42 Series Diaphragm Pump is designed for reliable performance in various situations. It features a run dry capability, convenient quick-connect plug-in connections for straightforward installation (hose kit included), self-priming functionality, and safeguards against ignition and overheating.
Specifications:
- Motor Voltage: 12 V DC
- Type: 4 chamber diaphragm pump, self-priming, designed for dry operation
- Mode: Demand or bypass
- Certifications: CE Approval (optional)
- Liquid Temperature: Maximum 140°F (60°C)
- Priming Capabilities: Up to 6 feet (1.8 m)
- Max Pressure: 55 psi (3.8 bar)
- Max Flow Rate: 11.3 lpm (3.0 gpm)
- Thermal Overload Protection: Activates at 90°C (±10)
- Inlet/Outlet Ports: 10/13mm pyramid hose barb, 13mm angle hose barb, 1/2" FNPT thread filter options
- Duty Cycle: Intermittent (continuous operation time depends on pressure)
- Motor Options: 2-pin connector, on/off switch
Applications:
- Pressurized water systems for yachts, RVs, and caravans
- Sprayer systems (vehicle-mounted sprayers, electric sprayers)
- Cleaning machines, humidifiers, water purification, medical devices
- Filling of food and beverages, liquid transfer
- Various other pressurization applications
Package Contents:
- 1 x Skorter 42 Series Diaphragm Pump 12V/24V
